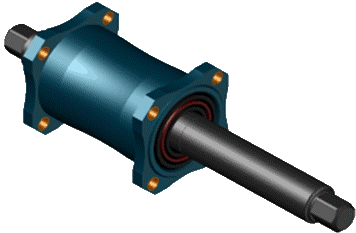

Torque

Sensiotivity revolutionizes Torque Measurement. Just to mention few advantages of Sensiotivity Torque Sensors:

• Low cost.
• Up to 35% more accuracy.
• Up to 55% more sensitivity.
• Up to 5 % more linearity.
• Up to 60% lesser effort for mounting up to 60%.
• Up to 70% lesser effort in electronics for signal preparation.
• Up to 50% lesser energy consumption.
• Up to 30% lesser volume.
• No restrictions with regard to shaft diameter.
• Insensitive to shear stresses, tangential and axial forces.
• Insensitive to temperature fluctuations and humidity.
• High sensitivity.
• High resolution 0.0001 Nm @ 100 Nm torque sensor (facultative: 0.001° for angle sensor)
• Low response time (< 30 µs).
• High linearity and repeatability.
• High electromagnetic compatibility by complete electrical isolation.
• Measuring range from 0 Nm to over 1000 KNm.
• Contactless measurement with high accuracy.
• Sensor fusion (Measurement of multiple values with only one single output signal).
• No Signal drift.
• No adhesive problems.
• Measurement of various physical properties.
• Ideal for small areas and highly dynamic and also static Systems & Applications.
• Ready for IIoT

Possibility to provide following information with only 1 output signal:

• Twist Angle
• Torque
• Absolute position angle
• Rotation speed
• Rotation detection (direction).
• Axial & Radial vibration.

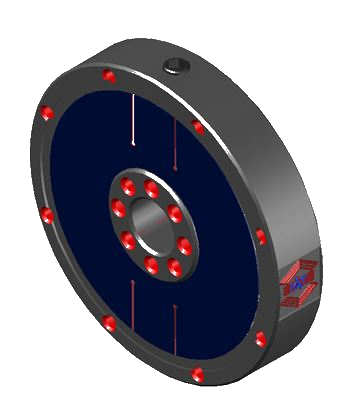

Torque – Spokes – Sensor:

Sensiotivity has also developed a solution for static torque measurement with the highest demands on installation space:

• Supply: 12-24VDC
• Output signal: Digital & Analog: 0 ± 10 VDC
• Measuring range: 0-1000KNm
• Resolution: Up to 0,1 Nmm (@100Nm)
• Sensitivity: 1mV / Nmm (@100Nm)
• Twist angle (Dj) less than 1° (up to 0.05 °)
• Max. turning angle 2 (up to 4) x 360°
• Measuring of the axial and radial vibration (ax, ay)
• Measurement of the twist angle of a defined design (Spokes) through one channel
• Measurement of sturgeon tilting forces or tilting moments on the inner and outer rings

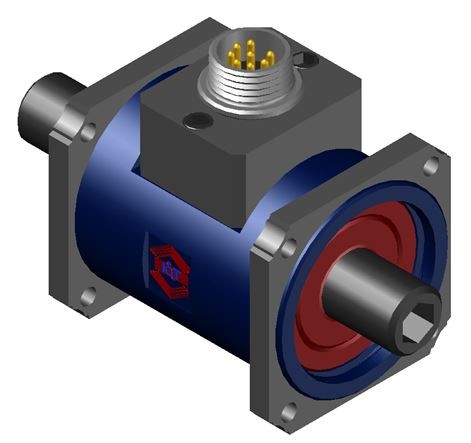

Reaction Torque Sensor

All advantages of Sensiotivity Torque Sensors are available for machine tools:

• Supply: 12-24VDC
• Output signal: Digital & Analog: 0± 10 VDC
• Measuring range: 0 - 300 Nm
• Resolution: Up to 0,1 Nmm (@100 Nm)
• Sensitivity: 1mV / Nmm (@100 Nm)
• Twist angle (Dj) less than 1 ° (up to 0.05 °)
• Max. turning angle 2 (up to 4) x 360 °
• Ready for IIoT

Further Versions:

For further details please don’t hesitate to contact us.
