Acceleration & Angle
Sensiotivity Acceleration & Angle Sensors are:
- Vibration Sensors
- Accelerometer / Inertia Measurement Unit (IMU) 1D / 2D and 3D
- Inclination Sensors
- Angular Rate Sensors
- Angle Sensors
- Speed Sensors

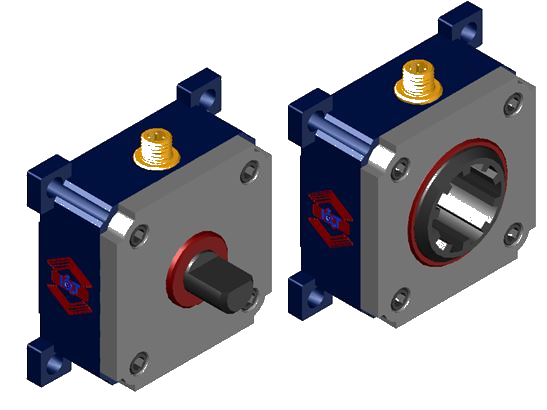

Angle Sensor
- Offers the possibility for Direct measurement of the Angel, Rotation Rate, Speed and Rotation Direction with one input and only one output signal
- Absolute 360 ° angle measurement system (exactly 0 to 360 ° or ± 180 °)
- Without any dead area
- Very high accuracy:
Angel: 0.036 -0,0005 ° / ± 30 “, Path: 0,000025 - 0,000005 µm
- No need for external amplification
- Can be used as crack sensor in the micrometer range
- Absolute path measurement system without any dead area
- exactly 0 to 250mm; special to more than 6000 mm
- resolution 0.3 µm; special: 0,005 µm
- sensitivity of 48 - 2400 [mV /mm]
- Ready for IIoT

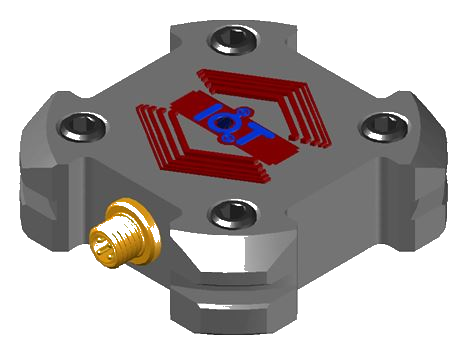

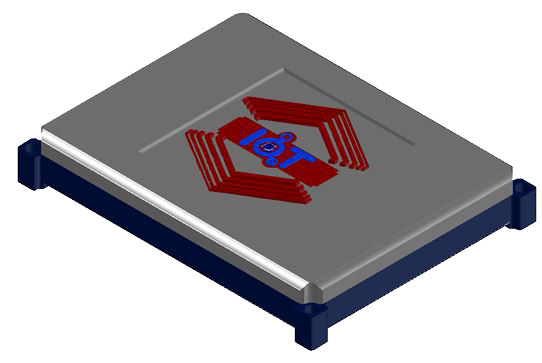

IMU (Inertia Measurement Unit)
The IMU is a high flexible and customizable Sensor. The IMU is available as 1D, 2D or also as 3D Version
- You can measure 16 parameters with only 3 measuring signals
- Absolut Inclinometer 1D/2D/3D: measurement of the absolute tilt (φx, φy [°]) with 0°-360°
- Rotation rate / Angular rate sensor 1D/2D/3D: ωx, ωy, ωz [°/sec or rad/sec]
- Accelerometer 1D/2D/3D: measurement of angular acceleration (αx, αy, αz [rad/sec²])
- Recognition of direction of rotation detection with one input signal
- Sensitivity only in the desired measuring direction (lateral acceleration has no influences)
- Transitionnal accelaration (ax, ay, az [m/sec²])
The IMU is ideal for automotive and automation applications. For further details please don’t hesitate to contact us.
Systems
Sensiotivity offers a very flexible and customizable technology.
Whether you decide to use Sensiotivity sensors as they are or you integrate Sensiotivity into your product, system or application or you expand the possibility of your product by easy to integrate Smart Sensor modules.

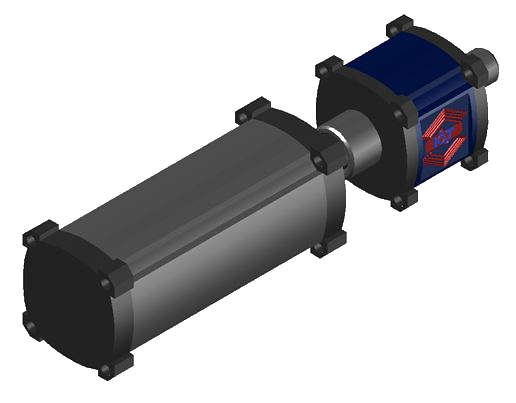

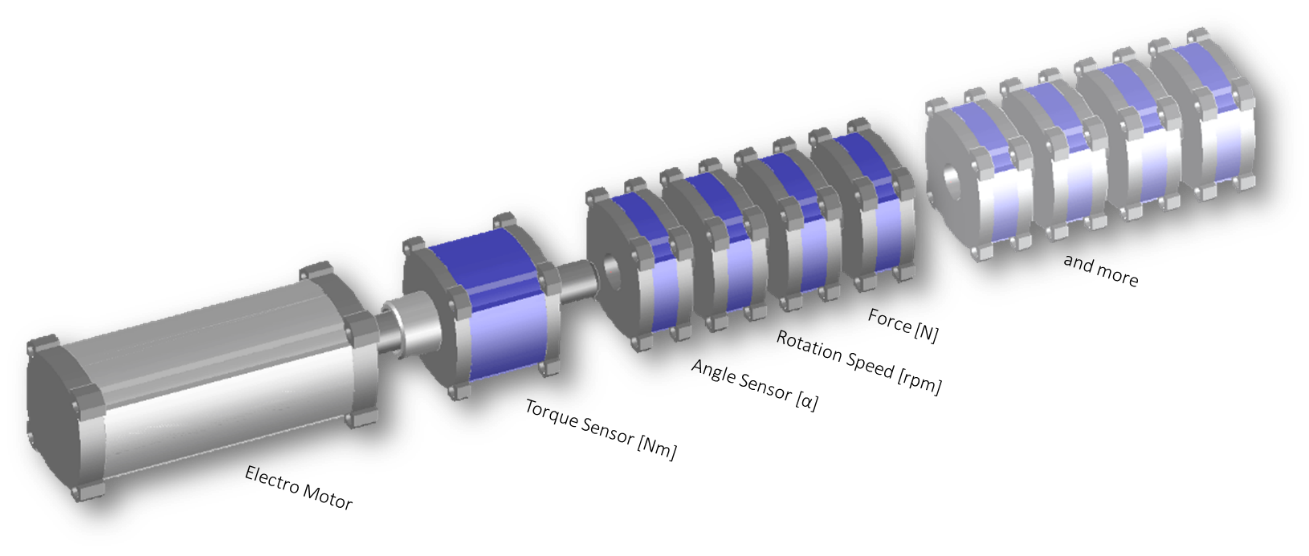

Example: linear electro motor with Sensiotivity Sensor Modules
For further solutions and details please contact us.
Reaction Torque Sensor
All advantages of Sensiotivity Torque Sensors are available for machine tools:
- Supply: 12-24VDC
- Output signal: Digital & Analog: 0± 10 VDC
- Measuring range: 0 - 300 Nm
- Resolution: Up to 0,1 Nmm (@100 Nm)
- Sensitivity: 1mV / Nmm (@100 Nm)
- Twist angle (Dj) less than 1 ° (up to 0.05 °)
- Max. turning angle 2 (up to 4) x 360 °
- Ready for IIoT
Flow & Pressure
We put a lot of effort to develop our Flow, Pressure and Level Sensors for highest industrial demands.
Our Sensors can be used in all industrial areas, whether water supply or Oil & Gas.
For sure all Sensors for the liquid area are also based on Sensiotivity’s innovative technology and provide known advantages.
When required other technologies can also be integrated to expand the field of applications, e.g. temperature. Other materials can also be chosen.
PRESSURE SENSOR
- High robustness against pressure peaks
- Linear relation of measurement and output
- Low latency
- No information loss if supply voltage breaks down
Level SENSOR
Flow SENSOR
For further solutions and details please
contact us.

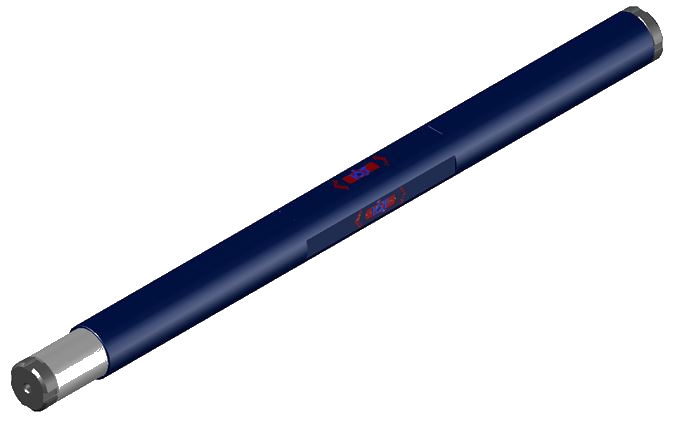

Displacement
A displacement sensor (displacement gauge) will be used to measure travel ranges between an object and a reference position. Displacement Sensors can be used for determination of height, thickness, and width in addition to travel range.
Displacement Sensors can be classified into two categories:
- Non-contact measurement using light or magnetic fields.
- Contact measurement performed in direct contact with the target.
Sensiotivity Sensors Displacement Sensors are contact sensors offering a high resolution:
- Measurement available even after loss of voltage supply.
- Suitable for very high linear velocity (10 m/s).
- No sensitive for lateral vibrations and lateral forces.
- Sensitivity of 48 - 2400 [mV /mm].
- No need for external amplification.
- Can be used as crack sensor in the micrometer range.
- Absolute path measurement system without any dead area.
- Exactly 0 to 250mm; special to more than 6000 mm.
- Resolution 0.3 µm; special: 0,005 µm.
- High moment of inertia.
- Ready for IIoT
For further solutions and details please
contact us.

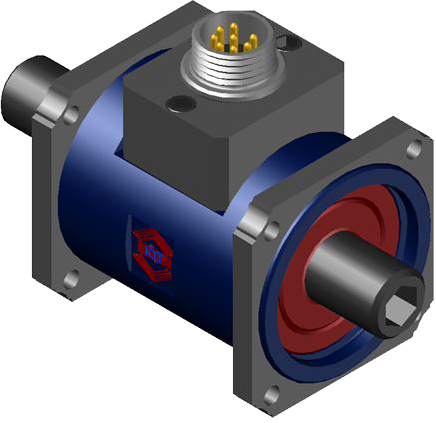

Torque
Sensiotivity revolutionizes Torque Measurement. Just to mention few advantages of Sensiotivity Torque Sensors:
- Low cost.
- Up to 35% more accuracy.
- Up to 55% more sensitivity.
- Up to 5 % more linearity.
- Up to 60% lesser effort for mounting up to 60%.
- Up to 70% lesser effort in electronics for signal preparation.
- Up to 50% lesser energy consumption.
- Up to 30% lesser volume.
- No restrictions with regard to shaft diameter.
- Insensitive to shear stresses, tangential and axial forces.
- Insensitive to temperature fluctuations and humidity.
- High sensitivity.
- High resolution 0.0001 Nm @ 100 Nm torque sensor (facultative: 0.001° for angle sensor)
- Low response time (< 30 µs).
- High linearity and repeatability.
- High electromagnetic compatibility by complete electrical isolation.
- Measuring range from 0 Nm to over 1000 KNm.
- Contactless measurement with high accuracy.
- Sensor fusion (Measurement of multiple values with only one single output signal).
- No Signal drift.
- No adhesive problems.
- Measurement of various physical properties.
- Ideal for small areas and highly dynamic and also static Systems & Applications.
- Ready for IIoT
Possibility to provide following information with only 1 output signal:
- Twist Angle
- Torque
- Absolute position angle
- Rotation speed
- Rotation detection (direction).
- Axial & Radial vibration.
Torque – Spokes – Sensor:
Sensiotivity has also developed a solution for static torque measurement with the highest demands on installation space:
- Supply: 12-24VDC
- Output signal: Digital & Analog: 0 ± 10 VDC
- Measuring range: 0-1000KNm
- Resolution: Up to 0,1 Nmm (@100Nm)
- Sensitivity: 1mV / Nmm (@100Nm)
- Twist angle (Dj) less than 1° (up to 0.05 °)
- Max. turning angle 2 (up to 4) x 360°
- Measuring of the axial and radial vibration (ax, ay)
- Measurement of the twist angle of a defined design (Spokes) through one channel
- Measurement of sturgeon tilting forces or tilting moments on the inner and outer rings

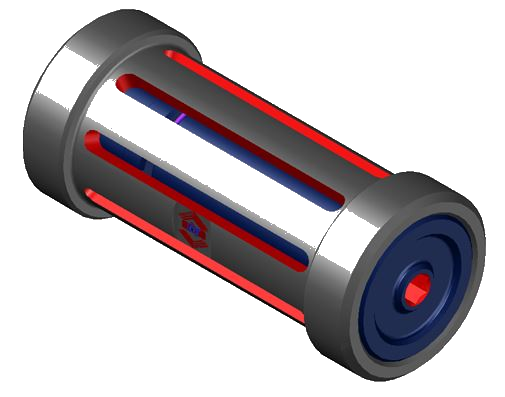

Reaction Torque Sensor
All advantages of Sensiotivity Torque Sensors are available for machine tools:
- Supply: 12-24VDC
- Output signal: Digital & Analog: 0± 10 VDC
- Measuring range: 0 - 300 Nm
- Resolution: Up to 0,1 Nmm (@100 Nm)
- Sensitivity: 1mV / Nmm (@100 Nm)
- Twist angle (Dj) less than 1 ° (up to 0.05 °)
- Max. turning angle 2 (up to 4) x 360 °
- Ready for IIoT
Further Versions:
For further details please don’t hesitate to contact us.
